Fenestration: Historical Buildings & Windows

Soundproof Windows Reduce Outside Noise & Increase Energy Efficiency

by Del Williams, technical writer

The Washington, D.C., Historic Preservation Review Board, in its publication Window Repair and Replacement Preservation and Design Guidelines, states, “Windows are one of the most important and integral character-defining features of historic buildings.  They provide a sense of scale, craftsmanship, proportion, and architectural styling.”

         As such, the primary objective of historic commissions and review boards, not to mention federal and local preservation statutes, is to ensure the existing windows remain intact whenever possible.  For this reason, repair is often recommended over replacement with more modern, double-paned windows that can quickly ruin a building’s character and charm.

         Repairing aging historic windows, however, has limits.  Although glass can be replaced and weather stripping installed, single-pane windows do not provide the air gap that is the key to the noise reduction and thermal efficiency of the double-pane approach.

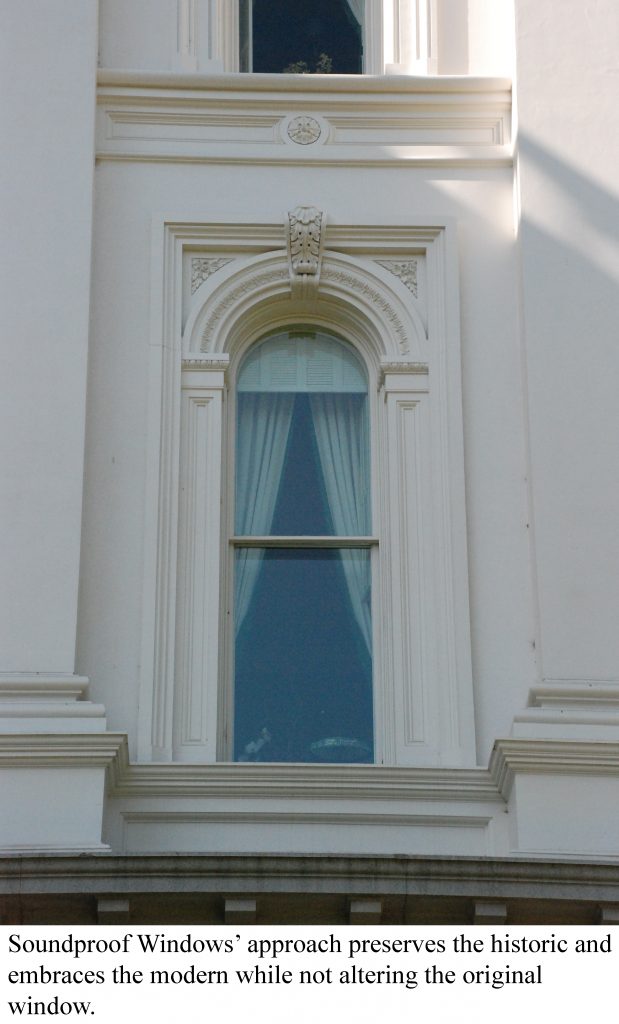

         Fortunately, an alternative approach preserves the historic and embraces the modern while not altering the original window.  Instead, a unique second window is installed on the interior that can be opened or closed like the original.  Unlike storm windows or glazed panels, these soundproof windows maximize both exterior noise reduction and thermal efficiency, and are found in historical districts and sites nationwide.

         Owners of historic properties have good reason to upgrade their windows.  While beautiful, the traditional single-pane windows found in historical properties are particularly prone to external noise intrusion.  In addition, the design offers poor thermal insulation properties.  Lawrence Posner sought to preserve the historic 10’ double hung windows on four of his Victorian cottages, which were certified by the National Park Service.  Yet these picturesque cottages, including one he was living in, were located close to the blaring horns of a railroad.

         “There’s a double set of train tracks between the cottages and the river, and every few feet the trains would blow their horns,” said Posner.  “It was deafening.  I had to wear earplugs to sleep.  There’s nothing like historic double hung windows for aesthetics, but the windows let the racket right in.”

         For Posner, replacing the historic windows of his cottages was not really an option because he did not want to compromise the aesthetics, and getting approval to do so from the National Park Service would be difficult, if not impossible.  Posner turned to Soundproof® Windows, Inc, a company with expertise engineering windows for some of the most noise sensitive environments in the world, such as recording studios.  The company has created a second, inner soundproofing window not visible from outside the building that is ideal for historic buildings.  The product is custom designed specifically to match, and function, like the original window.  The inner window essentially reduces noise from entering on three fronts: the type of materials used to make the pane, the ideal air space between original window and insert, and finally improved, long-lasting seals.  The combination can reduce external noise by up to 95%.

         The first noise barrier is laminated glass, which dampens sound vibration much like a finger on a wine glass stops it from ringing when struck.  An inner PVB layer of plastic further dampens sound vibrations.  Air space of 2”-4” between the existing window and the Soundproof Window also significantly improves noise reduction because it isolates the window frame from external sound vibrations.

         Finally, the company places spring-loaded seals in the second window frame.  This puts a constant squeeze on the glass panels, which prevents sound leaks and helps to stop noise from vibrating through the glass.   When choosing such soundproofed windows for a historic renovation project, the most objective measure of sound reduction is the window’s Sound Transmission Class (STC) rating.  In this rating system, the higher the number the more noise is stopped.  A typical rating for standard windows is 26 to 28, for example.  The acoustic soundproof windows, by comparison, earn a 48 to 54 STC rating.

         Soundproofing the windows of historic buildings can also significantly reduce energy costs.  Adding the inner window provides an additional layer of insulation with better insulation values than the best low-e, argon gas-filled double-paned window.  This can reduce heat loss by 77% or more for single-paned windows.  The added insulation stops unwanted air infiltration around and through window seals, and can reduce the heating-cooling portion of energy bills up to 30%.

         According to Posner, while he purchased the windows primarily for soundproofing, they also have value in terms of lowering heating and cooling costs.  “The windows have helped to prevent cold drafts from entering and improve insulation and energy efficiency,” he says.  “That’s important to long term comfort as well.”  With an upgrade to the latest soundproof windows, renovators and owners no longer have to settle.  Now they can preserve the historic character of properties while achieving modern comfort.
