Steel-Clad, Net-Zero Energy Home in Orinda, California
by Marcus Dodson, editor & publisher
A three-bedroom renovation began as a remodel of a 1954 ranch house at the foot of a hill next to a seasonal creek in Orinda, California. After finding the existing structure and soils to be unsuitable, Faulkner Architects, Truckee, California, decided to reuse the existing footprint under the shade of a valley oak that had grown up close to the original house. The clients, a couple of environmental scientists who, along with their two sons, had relocated from the Oakland Hills to the summer climate of Orinda, employed a commitment to sustainability, including a request for net-zero energy performance annually.

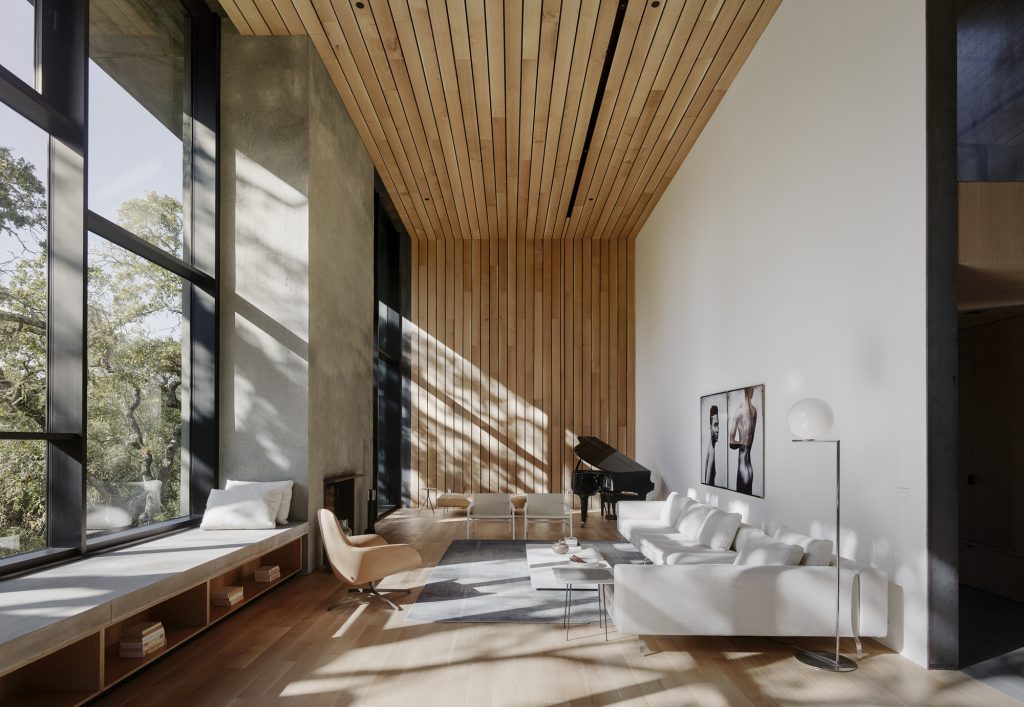

The surviving portion of the original house is the fireplace, which was wrapped in concrete and utilized for structural support. This made additional grading unnecessary and allowed the new house to maintain the same intimate relation to the old oak. Entry to the 3,725-sq.ft. house is from the north, where a steel plate-covered walkway leads to the front door. Inside, one finds light-filled 20’ ceilings and floor-to-ceiling, high-performance glazing that builds continuity with the landscape.
A 12’-wide retractable glass wall opens onto a patio and adjoining garden. The family desired an open layout that connected directly to the landscape. A mezzanine plan evolved with a double-height family space nested with a master bedroom and study stacked above the kitchen and nook. A screened pacing deck for long phone calls shades the upper level from afternoon summer sun. Downstairs, secondary bedrooms along an extendable hallway wrap an outdoor dining area situated between the kitchen and family room.

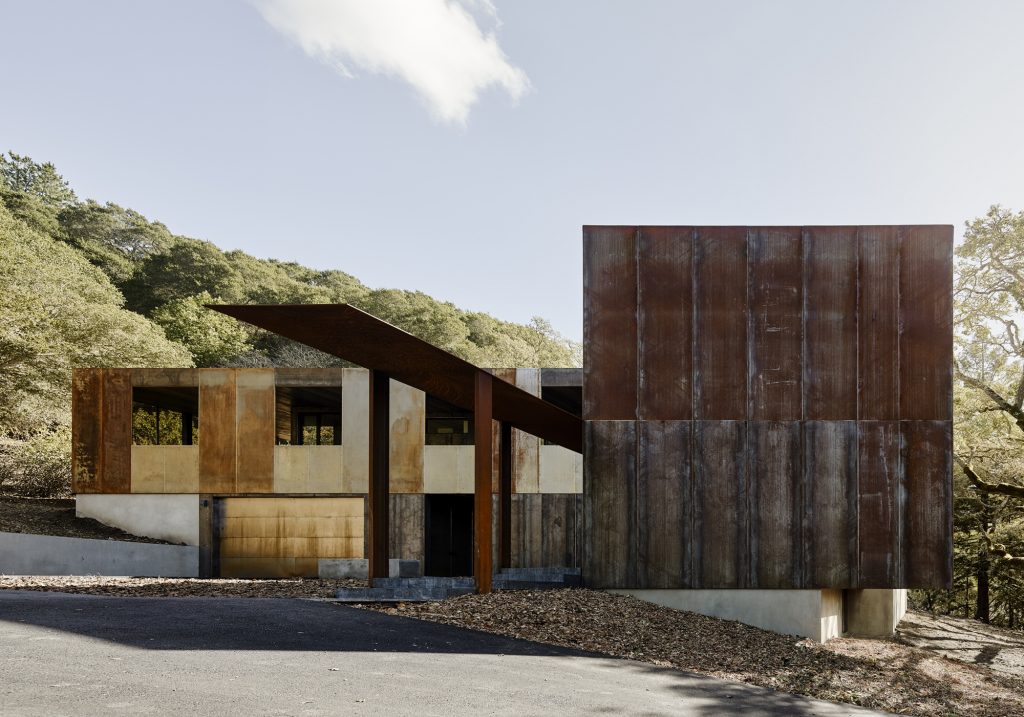

A 14-gauge corten rain screen provides a no-maintenance skin. High levels of insulation and glazing efficiency reduce heating and cooling loads. An 8.1kW photovoltaic system provides on-site renewable energy and produced more electrical energy than the house used the first year. Rainwater is collected via a waterfall from the roof at the end of the hallway, and buried tanks store water for use in toilets and laundry. Greywater is collected separately and reused for irrigation. Electronically commutated motors and variable speed heat pumps are used to further limit energy use and control heating and cooling, while an energy recovery ventilator is used to provide fresh air.
Construction materials and methods were considered in balance between first and life cycle costs. The corten steel rain screen for the exterior skin and interior wood were chosen to take advantage of zero annual maintenance cost and a shotcrete foundation allowed formwork to be repurposed for wood framing. Single-use material selections such as the corten steel and shotcrete foundation reduced complexity in detailing and labor costs, allowing a larger portion of the budget to be reallocated for upgraded mechanical, insulation, and glazing systems.

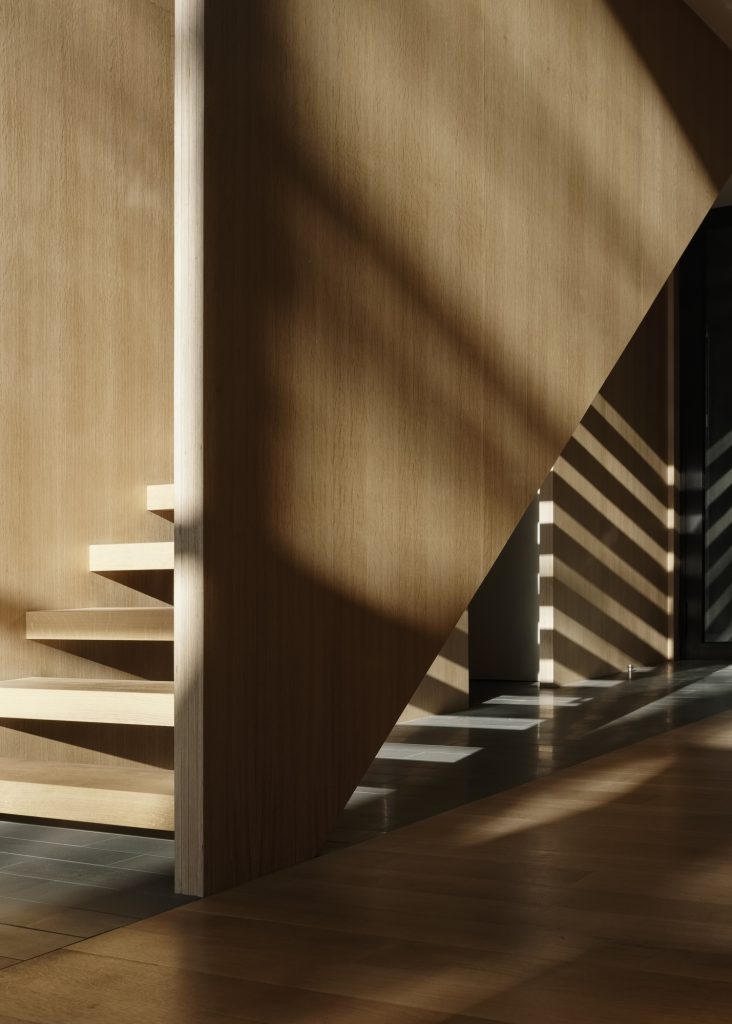

The same attitude for interior finishes produced acoustically detailed, unfinished oak ceilings and walls. The smell of the oak and feel of it under foot builds a multisensory connection to the immediate landscape outside. The total of the limited and landscape-driven materials presents a relaxed and quiet built environment that allows the senses to focus on the natural environment. A haptic connection to the rhythms of our planet is present in the lives of the family.
